M1050C6M
M1050C6M
f=10～50mm F2.8 C-Mount 6.0MP
for 1/1.7” 1/1.8” 1/2” 1/2.5” 1/2.9” 1/3” 1/4” ...
for 1/1.7” 1/1.8” 1/2” 1/2.5” 1/2.9” 1/3” 1/4” ...
Model | 10mm | 50mm | |
Image Format | 1/1.7” | 1/1.7” | |
Max.Aperture Ration | F2.8～C | F2.8～C | |
Focus Range | 0.1m～Inf. | 0.3m～Inf. | |
Iris Type | Manual | Manual | |
Filter Size | M35.5 ,P=0.5mm | M35.5 ,P=0.5mm | |
FOV(D×H×V) | 1/1.8” | 44.2°× 36.8°× 24.8° | 11.1°× 9.3°× 6.2° |
1/2” | 39.6°× 31.8°× 23.8° | 10.0°× 8.0°× 6.0° | |
1/3” | 29.8°× 23.8°× 18.0° | 7.5°× 6.0°× 4.5° | |
CRA | ≤6° | ≤4° | |
Distortion | -4.35% | -0.26% | |
Mount | C-Mount | C-Mount | |
Operation | Focus | Manual | Manual |
Zoom | Manual | Manual | |
Dimensions | M37×65.0mm | M37×65.0mm | |
Weight | 125g±2g | 125g±2g | |
Operating Temperature | -20°～60° | -20°～60° | |

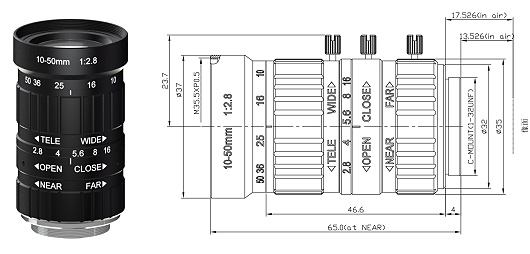

產品尺寸：
|
